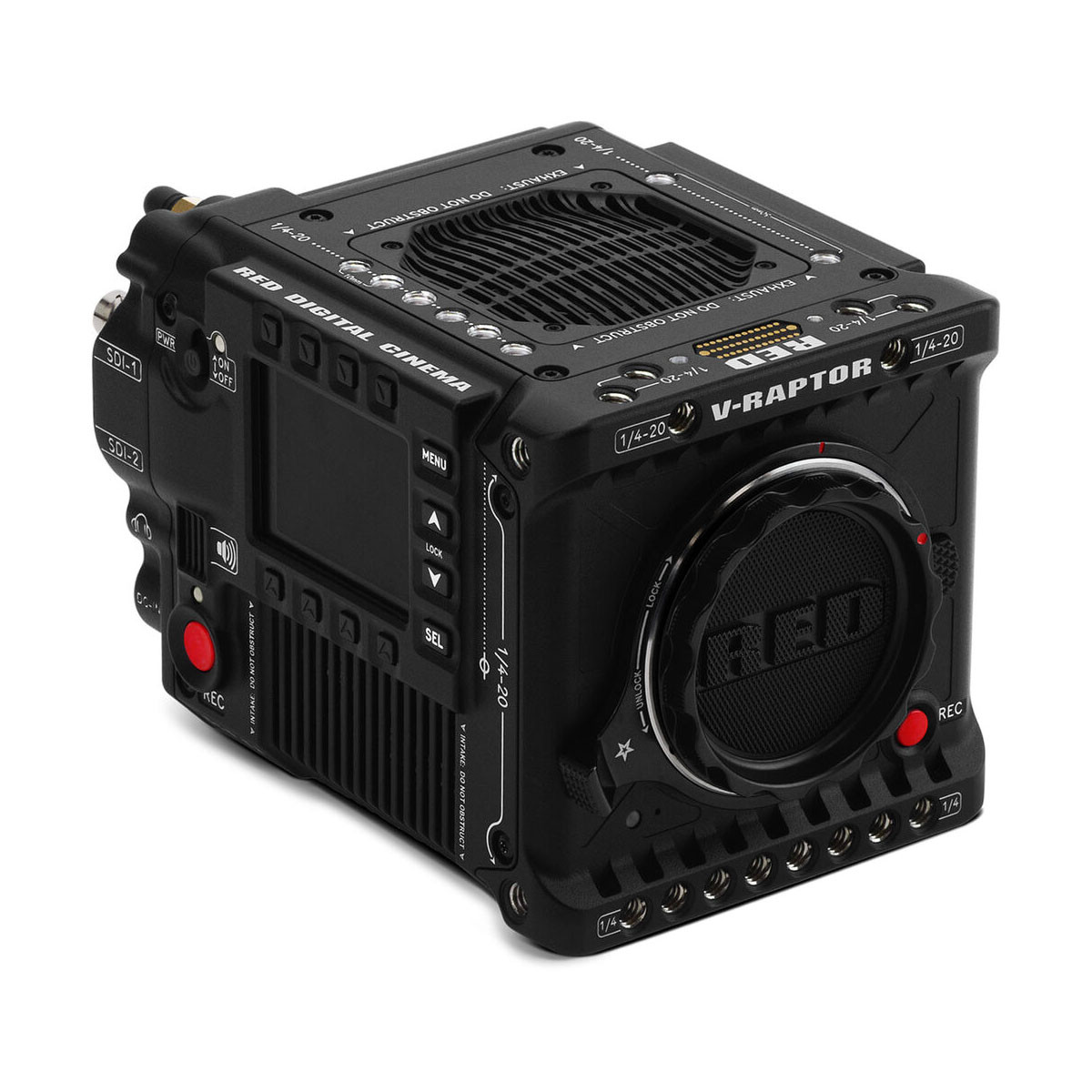

RED V-RAPTOR 8K VV

Released: September 2021Sensor: Vista Vision (40.96 x 21.6 mm)Lens Mount: RFBase Sensitivity: 800 ISOWeight: 1828 gDimensions: 152 mm x 108 mm x 108 mmFind compatible Angelbird cards
COMPARE WITH CAMERA
chevron_right
chevron_right
Check Rec Modes & TimesCheck Lens Coverage
COMPARE WITH CAMERA
chevron_right
chevron_right
Advertisement
Advertisement
Advertisement
Dynamic Range
3rd best - max. 13.7 (SNR=2)Check Ranking
2nd best - max. 15.1 (SNR=1)Check Ranking
Stops (SNR=2)Stops (SNR=1)WaveformIMATESTPatch RangeCodecISOFramerateResolutionGammaComment
13.414.915.3REDCODE HQ800258192x4320Results include Highlight Recovery which cannot be turned off
13.414.70ProRes 4444 XQ800258192x4320Results include Highlight Recovery which cannot be turned off
13.715.10REDCODE HQ800254096x21608K RAW downscaled to 4K, Results include Highlight Recovery which cannot be turned off
See Lab Test Article ...
Rolling Shutter
6th best - min. 6 msCheck Ranking
Rolling ShutterImageSensor ModeCodecFramerateResolutionComment
8 msFull FrameREDCODE258192x432025-120fps
6 msSuper 35REDCODE256144x324025-160fps
See Lab Test Article ...
Recording Modes Overview
4K 8:1 (4096 x 512) @ max 1000p, REDCODE HQ4K 8:1 (4096 x 512) @ max 1000p, REDCODE MQ4K 8:1 (4096 x 512) @ max 1000p, REDCODE LQ
4K 8:1 (4096 x 512) @ max 1000p, REDCODE ELQ4K 8:1 (4096 x 512) @ max 960p, REDCODE HQ4K 8:1 (4096 x 512) @ max 960p, REDCODE MQ
4K 8:1 (4096 x 512) @ max 960p, REDCODE LQ4K 8:1 (4096 x 512) @ max 960p, REDCODE ELQ4K 8:1 (4096 x 512) @ max 900p, REDCODE HQ
4K 8:1 (4096 x 512) @ max 900p, REDCODE MQ4K 8:1 (4096 x 512) @ max 900p, REDCODE LQ4K 8:1 (4096 x 512) @ max 900p, REDCODE ELQ
See complete Recording Modes & Times ...
