NANLUX NL Mount Projection Attachment 15-30° for the Evoke Lighting Series Introduced

Lighting News

by Alexandra ThompsonAugust 5^th, 2024

Subscribe to News

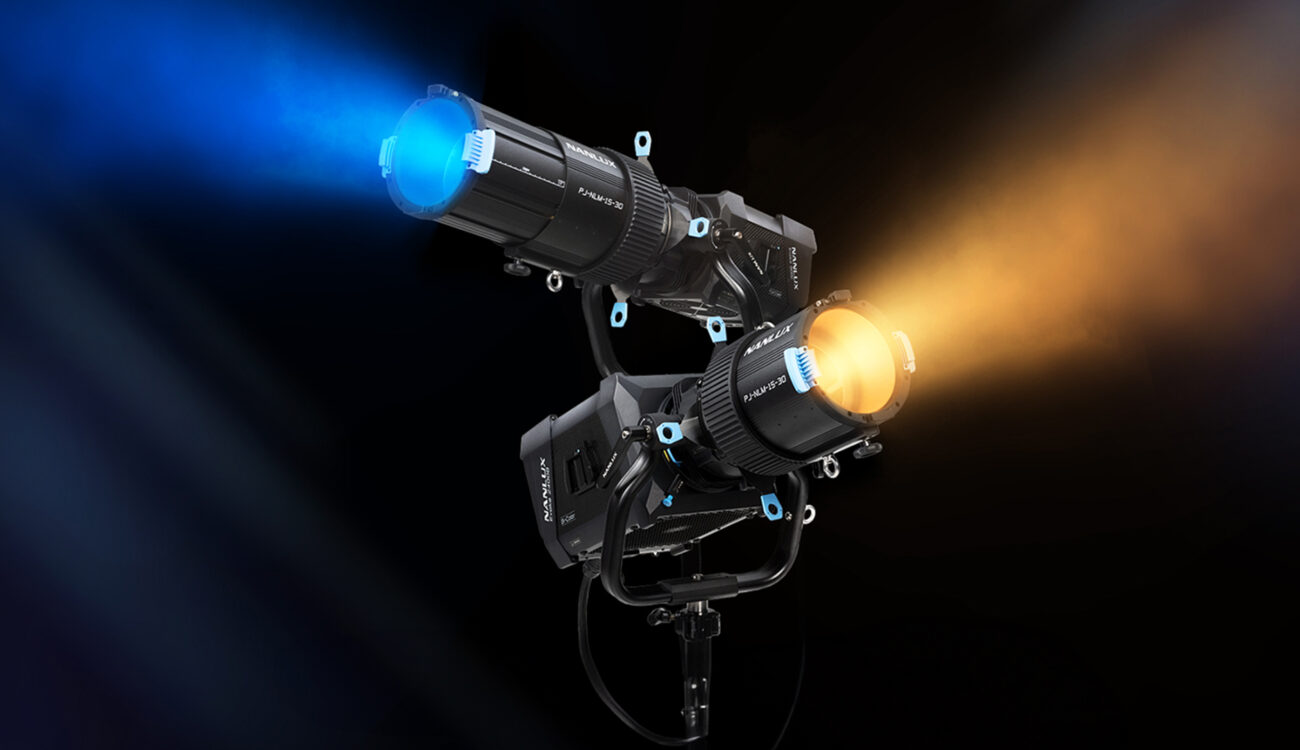

NANLUX has introduced an addition to their line of accessories specifically designed for the Evoke series of LED spotlights: the NL Mount Projection Attachment 15-30°. The attachment produces a well-controlled beam of light and provides precise optical control over zoom, focusing, cutting, and gobo projection. Its range of lighting effects can be expanded further with the use of reflectors. Let’s take a closer look.

The NANLUX Evoke series has given us some pretty powerful, highly versatile lights that are a good choice for professional lighting needs, and we’ve written in-depth reviews about many of them. You can read about the NANLUX Evoke 1200, NANLUX Evoke 1200B, NANLUX Evoke 2400B, and the NANLUX Evoke 900C to see just how impressive they are. Now, with the addition of this projection attachment, the capabilities of these lights have been expanded even further.

Key features at a glance

• Enhances illuminance for light fixture
• 15-30° of zoom range
• 90° rotatable lens barrel
• Compatible with third-party barrels and lenses
• Precise optical system with edge-blackening, aspherical lens and optical anti-reflective coating
• 15° offset yoke allows a larger downward angle while maintaining stability
• Provides multiple light-shaping possibilities with cutting shutters, an iris diaphragm, gobos, and a gel frame
• The aluminum alloy body ensures optimal heat conduction
• Rugged flight case ensures secure transportation

Optical capabilities and flexible control

According to the company, NANLUX’s NL Mount Projection Attachment 15-30° optical system is designed to control light loss, chromatic aberration, and distortion while achieving high beam uniformity (78% uniformity and 0.88% distortion measured at 3m with a 15° beam angle).

Using the Evoke 900C as an example of the Projection Attachment’s capabilities, the company says its advanced precision optical lens can deliver up to 7.5 times the illuminance of the standalone light (2.5 times the illuminance when used with a reflector). It achieves 32,720 lux at 3 meters with a 15° beam angle and a color temperature of 5600K. At the same distance and with a beam angle of 30°, the 900C achieves 19,090 lux.

Designed for a smooth and continuous beam-angle adjustment, the lens barrel can extend and retract without being restricted to specific focal lengths. An added advantage on set is that the illumination spread can be controlled without moving the lights. Instead of pushing the lens barrel, the light beam is focused and defocused by rotating the zoom ring.

Strong, portable, and stable

The Projection Attachment weighs under 12kg/26.45 lbs and is composed of aluminum alloy and highly durable nylon. The materials are heat-resistant, and there is a passive cooling system. As for stability, the yoke’s 15° offset design allows for a greater downward angle on a light stand. Further protection for the attachment comes in the shape of protective covers, an eyebolt on the barrel and yoke for attaching a safety cable, and a fastening knob to help limit movement and swaying when the attachment is tilted downward. Finally, the Projection Attachment ships in a sturdy flight case with impact-resistant corner bumpers and internal linings.

Light shaping with the NANLUX Projection Attachment 15-30°

The lens barrel can rotate 90 degrees to adjust the beam angle without moving the shutter or gobo. Each shutter can be adjusted independently. The 18-blade iris diaphragm creates a rounded beam shape, and a built-in rod can be used to adjust and lock in the beam size.

The NANLUX NL Mount Projection Attachment 15-30° includes four gobos and a gobo holder, and as the design is a standard A size, it is compatible with a wide range of pre-made gobos. There is also a gel frame for inserting gels that allow daylight or bicolor lights to output color.

What’s in the package

Included with the NL Mount Projection Attachment 15-30°:

• NL Mount Projection Attachment 15-30° × 1
• Plastic Protective Cover (front cover) × 1
• Plastic Protective Cover (back cover) × 1
• A Size GOBO × 4
• GOBO Holder × 1
• Gel Frame × 1
• User Manual × 1
• Flight Case × 1

Price and availability

The NL Mount Projection Attachment 15-30° is priced at $1590 and is shipping now. For more information, please see the NANLUX website.

What do you think about the NL Mount Projection Attachment 15-30°? Is it an accessory you’ve been waiting for? Let us know in the comments!
